For Samsung Galaxy A30 / A305 Replacement Charging Port Board With Headphone Port & Microphone The Repair Plus
Hurry up, only 6 items left in stock.
Discount applies at checkout on any mix of parts — ideal for repair shops.
Estimated delivery · Royal Mail Tracked 482–3 working days
- Order placedToday
- DispatchedSame day
- At your door2–3 days
Tap a service to see its arrival date. Choose your service at checkout.
Phone parts are delicate. We recommend fitting by a qualified repair technician — damage caused during fitting is not a product fault. Need help choosing the right part? Call 07425 443625 or email info@therepairplus.com (Mon–Fri 10:00–18:00). Repair shop? Open a trade account.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

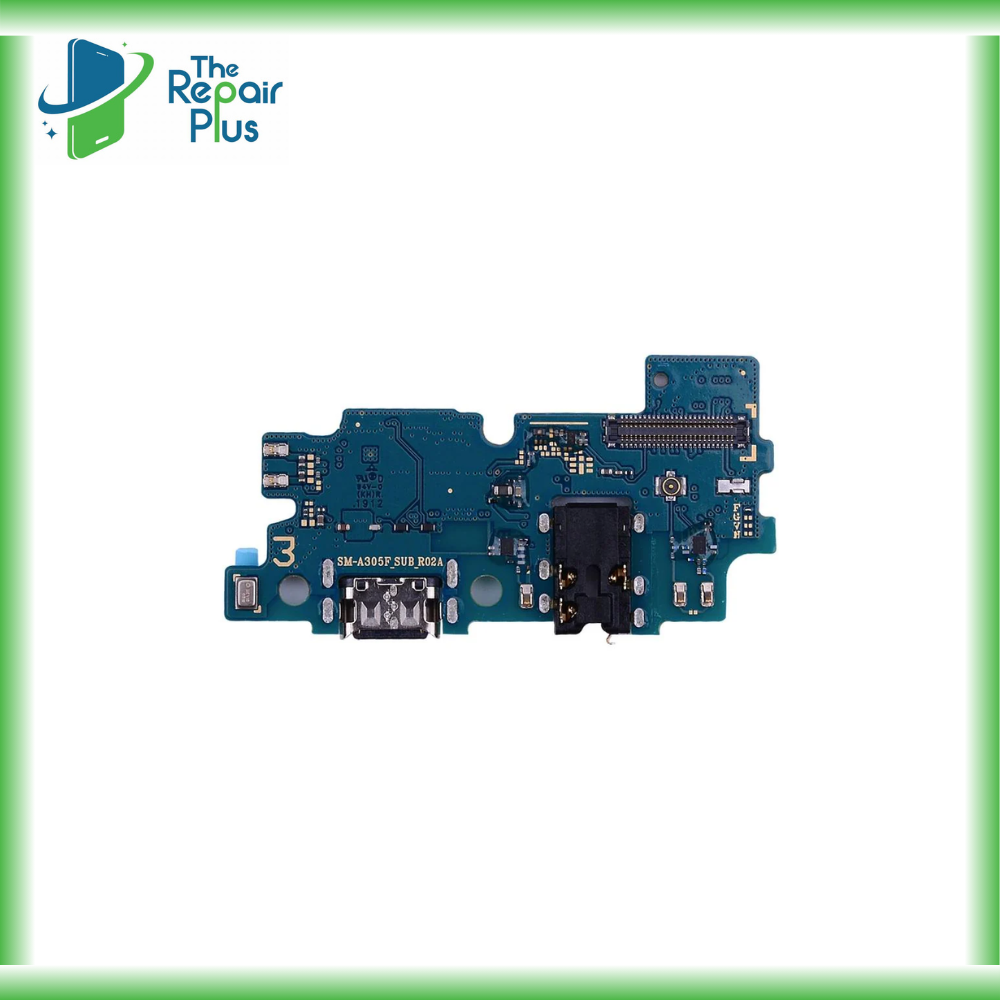

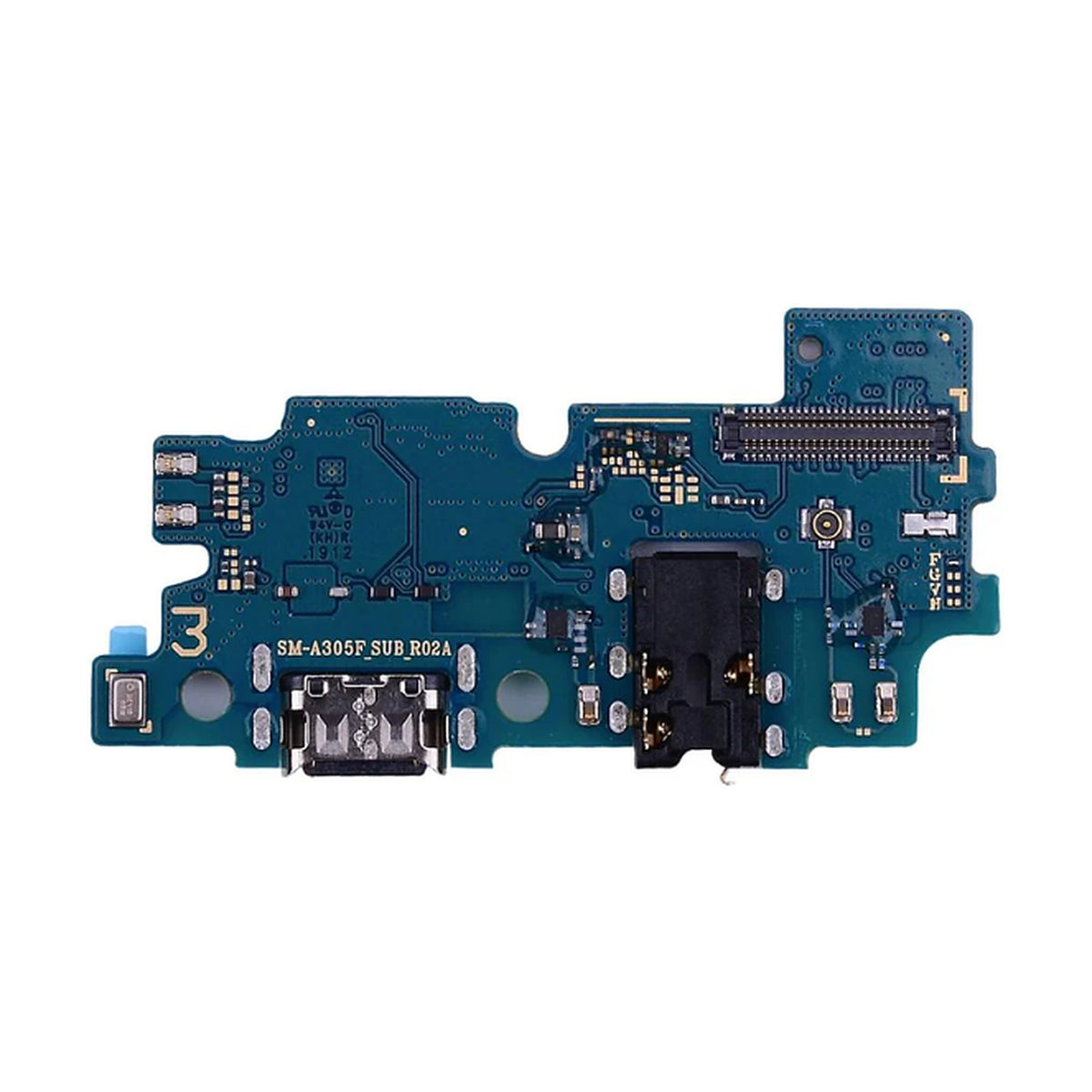

The Repair Plus charging port board for Samsung Galaxy A30 (A305) with headphone port and microphone is a replacement lower board for the Galaxy A30 A305 carrying the charging port, headphone jack and microphone. Fit it when the phone will not charge, wired headphones cut out or callers cannot hear you. Brand new, OEM standard and shipped the same day from Manchester when you order before 4pm, Monday to Friday.
Key features
- Complete lower board: charging port, headphone port and microphone together.
- Audio restored: fixes crackling or silent wired headphones.
- Call clarity: new microphone for clear outgoing audio.
- A305 fit: made for the Galaxy A30 layout.
- Tested: checked before dispatch.
Specifications
| Part | Charging port board |
|---|---|
| Compatible model | Samsung Galaxy A30 (A305) |
| Includes | Charging port, headphone port, microphone |
| Condition | Brand new |
| Quality | OEM standard |
| Dispatch | Same day before 4pm, Monday to Friday, from Manchester, UK |
| Returns | 30 days |
Compatibility
Fits the Samsung Galaxy A30, model A305. It does not fit the Galaxy A30s, which uses a different board. Check the model number in Settings > About phone.
How to replace the Galaxy A30 charging port board
Most Galaxy A30 charging port swaps take under an hour with basic phone tools. A typical fitting order is:
- Power the phone off and remove the SIM tray.
- Soften the back cover adhesive with gentle heat and lift the cover away with a pick.
- Remove the lower screws and plastic cover, then disconnect the battery connector before touching anything else.
- Unclip the display and main board flex cables from the old board and lift it out.
- Fit the new board, reconnect every flex, refit the battery connector and test charging before sealing the back.
Why buy from The Repair Plus
- Same-day dispatch when you order before 4pm, Monday to Friday.
- UK stock, shipped from Manchester.
- Every part tested before dispatch.
- 30-day returns.
- Trusted by DIY repairers and independent repair shops.
Frequently asked questions
Will this fit a Galaxy A30s?
No. It is for the A30 (A305) only.
Does it fix the headphone port?
Yes. The headphone port is part of this board.
Will it help if callers cannot hear me?
If the microphone is at fault, yes. It is included on the board.
How quickly will it arrive?
Orders placed before 4pm, Monday to Friday, are dispatched the same day from our Manchester stock, so most UK customers receive the part the next working day or soon after.
