For Motorola Edge 50 Pro P-OLED LCD Screen with Digitizer Full Assembly

Is the stunning 144Hz P-OLED display on your Motorola Edge 50 Pro cracked, unresponsive, or showing visual defects? This P-OLED LCD Screen with Digitizer Full Assembly is the complete, high-quality replacement component you need to restore your phone's vibrant 1.07 billion colors and flawless touch sensitivity in one ready-to-install unit . Available now at THE REPAIR PLUS, your trusted UK-based online store for quality phone repair parts.

Compatibility

This P-OLED display assembly is designed exclusively for the Motorola Edge 50 Pro . The Motorola Edge 50 Pro was announced on April 3, 2024 and released on April 8, 2024, featuring a 6.7-inch P-OLED display with 1220 x 2712 pixel resolution and 144Hz refresh rate . This assembly is compatible with model numbers including XT2403-2 . It is not compatible with other Motorola Edge models or variants. Please verify your device model number in Settings → About Phone before purchasing to ensure correct fitment. THE REPAIR PLUS recommends double-checking your device compatibility to guarantee a perfect match.

Key Product Features

• P‑OLED Display Technology: Superior color vibrancy, deep blacks, and excellent contrast for an immersive viewing experience

• 144Hz Refresh Rate: Ultra-smooth scrolling and fluid animations for gaming and daily use

• 1.07 Billion Colors: Exceptional color reproduction with 100% DCI-P3 color gamut coverage

• High Resolution: 1220 x 2712 pixels FHD+ with ~446 ppi density for crystal-clear image quality

• Peak Brightness: 2000 nits for excellent outdoor visibility even in direct sunlight

• Complete Full Assembly: Includes P-OLED display, touch screen digitizer, and front frame as a single integrated unit

• In-Display Fingerprint Compatible: Fully supports the optical under-display fingerprint sensor integrated into the screen

• Corning Gorilla Glass Protection: Maintains the same level of scratch resistance as the original

• 100% Tested Quality: Each unit is thoroughly tested and verified in good working condition before shipping

Signs You Need This Replacement

• Cracked, shattered, or scratched screen glass affecting visibility and touch response

• Unresponsive touch areas or completely dead touchscreen functionality

• Display showing lines, spots, discoloration, flickering, or black spots

• Black screen or no image despite phone powering on and functioning

• Physical damage from drops or impacts compromising the display

• Ghost touching or erratic touch behavior

• Display bleeding or backlight issues

• Approximately 65.32% of Motorola Edge 50 Pro problems are related to screen, display, or touch screen damage

Original Device Specifications

For reference, the Motorola Edge 50 Pro originally features :

• Display Size: 6.7 inches

• Display Type: P-OLED, 1.07 billion colors

• Resolution: 1220 x 2712 pixels FHD+

• Refresh Rate: 144Hz (adaptive)

• Touch Sampling Rate: 360Hz

• Pixel Density: ~446 ppi

• Peak Brightness: 2000 nits

• Screen-to-Body Ratio: ~92.8%

• Protection: Corning Gorilla Glass (unspecified version)

• Features: HDR10+, in-display optical fingerprint sensor

• IP Rating: IP68 dust and water resistant

• Battery: 4500 mAh with 125W wired charging and 50W wireless charging

Installation Information

⚠️ CRITICAL: TEST BEFORE INSTALLATION

Screen replacement parts are very fragile. Professional installation is highly recommended .

Pre-Installation Testing Procedure :

1. Do not remove any protective film or tags from the new screen before testing

2. Carefully connect the screen to the motherboard without fully installing it in the phone (simulate testing)

3. Power on the device to verify the display and touch functionality work correctly

4. If the screen fails to show properly, contact us immediately. Do not force installation

Important Precautions :

• Use ESD protection: Ground yourself with an anti-static wrist strap to prevent static electricity from damaging electronic components

• Wear eye protection: Broken glass splinters can cause injury

• Do not over-bend the LCD cable: Bending the cable beyond 90 degrees will cause black display or permanent damage

• Handle with care: Avoid applying excessive force or bending flexible parts beyond their limits

• Once the screen is installed, it is considered used and cannot be returned or exchanged

Repair Difficulty Warning :
The Motorola Edge 50 Pro features a curved P-OLED display with an in-display fingerprint sensor, which significantly increases repair complexity. The screen flex cable is located under the battery, requiring complete disassembly . Professional repair services estimate replacement can be completed in approximately 39 minutes by experienced technicians .

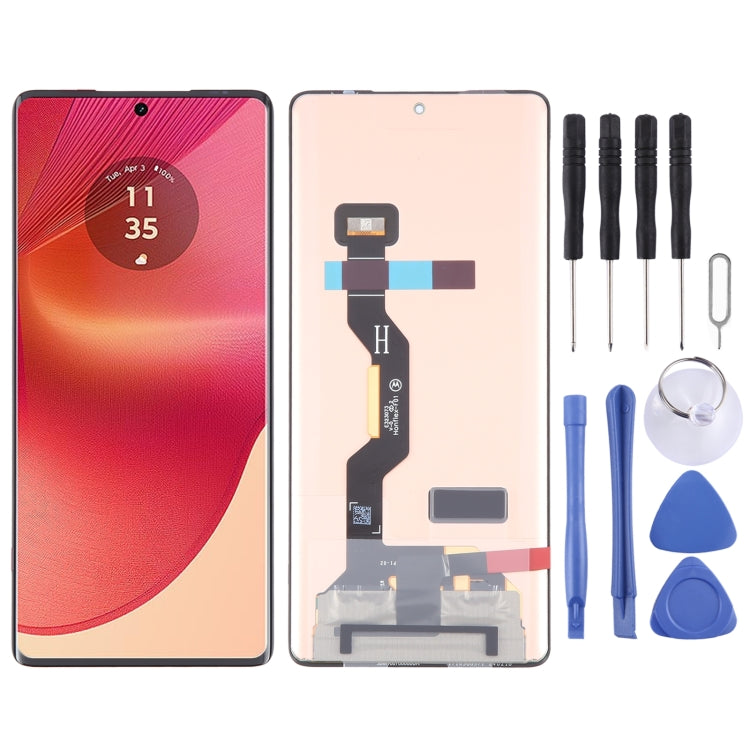

Required Tools for Professional Installation :

• Precision screwdriver set (Torx and Phillips)

• Plastic opening tools and spudgers

• Suction cup

• Heat gun or heating pad

• Tweezers

• Isopropyl alcohol for adhesive softening

• Double-sided adhesive tape

• T-7000 or B-7000 adhesive

DIY Installation Warning :
This replacement requires technical skill and proper tools. If you lack experience with smartphone disassembly, please seek professional installation services. The curved screen design makes this a particularly challenging repair. We are not responsible for any damage caused during installation.

Why Choose THE REPAIR PLUS?

• UK-Based Online Store: Fast shipping across the United Kingdom with reliable delivery

• Quality Tested Parts: Each screen assembly is sourced from trusted suppliers and verified for quality

• Expert Support: Questions about compatibility? THE REPAIR PLUS team is here to help

• Trusted Supplier: Join countless UK customers who trust THE REPAIR PLUS for their phone repair needs

Package Includes

1 x P-OLED LCD Screen with Digitizer Full Assembly for Motorola Edge 50 Pro

Order with Confidence

When you order from THE REPAIR PLUS, you are choosing quality parts and reliable service from a UK-based seller. We take pride in helping you keep your devices running like new. Fast shipping across the UK means you get your parts quickly and can restore your Motorola Edge 50 Pro's stunning 144Hz P-OLED display with minimal downtime.
