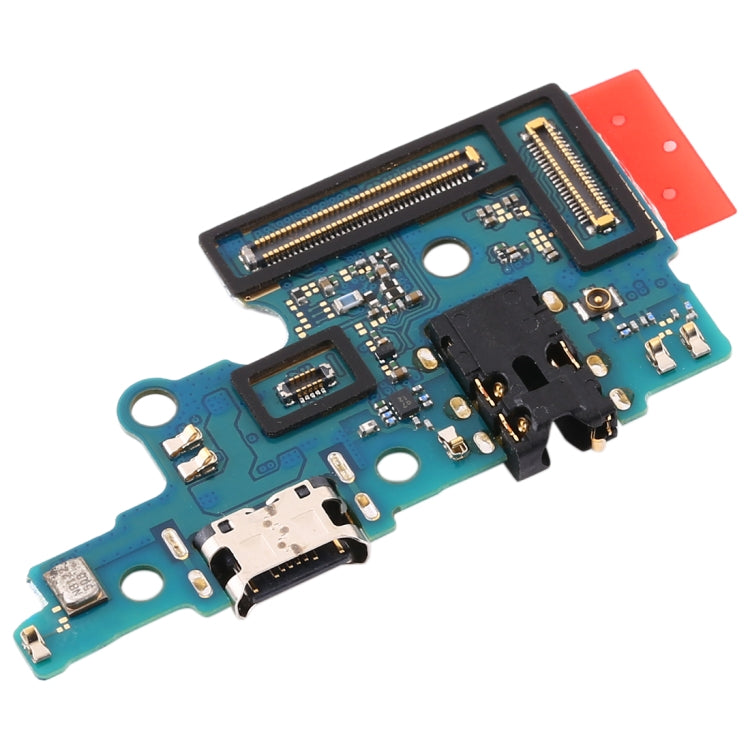

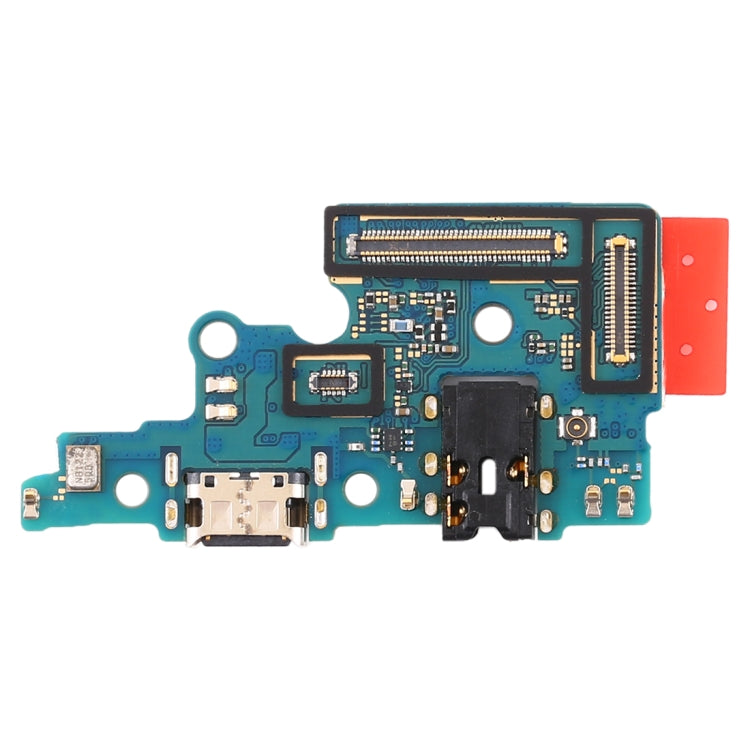

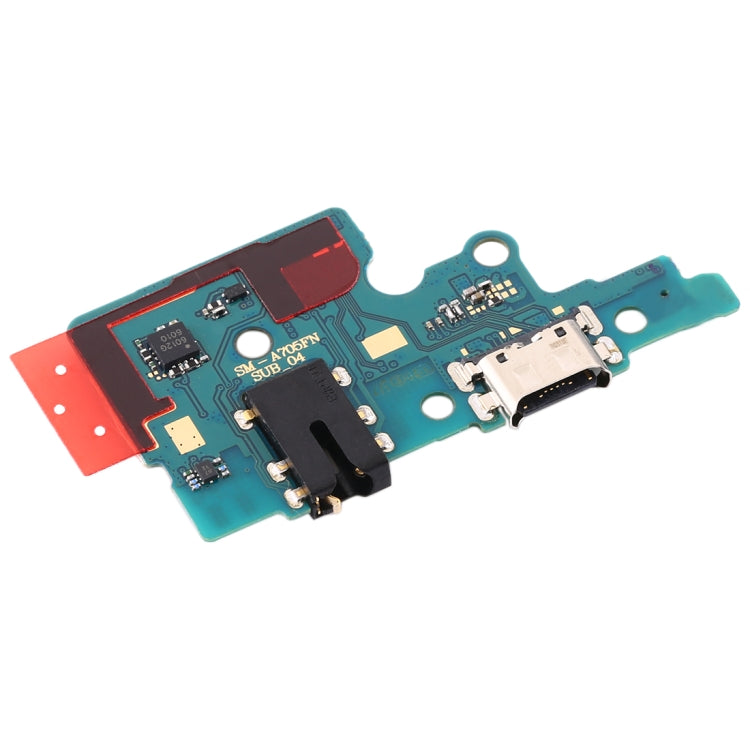

For Galaxy A70 / A705F Charging Port Board with IC

Is your Samsung Galaxy A70 no longer charging properly? Does the USB-C cable feel loose, disconnect at the slightest movement, or fail to trigger fast charging? Perhaps you're struggling with data transfer failures, or the headphone jack has stopped working. At THE REPAIR PLUS, we understand how these issues can disrupt your daily routine, especially when you depend on your device for work, communication, and entertainment.

This Galaxy A70 / A705F Charging Port Board with IC is the complete replacement solution for your device. Designed specifically for the SM-A705F model, this genuine-style replacement component includes the integrated charging IC (Integrated Circuit) that manages power delivery to your phone. When you choose THE REPAIR PLUS, you're investing in a premium part that will restore every function of your phone's bottom board—from fast charging to seamless data synchronization, crystal-clear audio, and reliable microphone performance.

---

Why Your Galaxy A70 Charging Port Might Need Replacing

The charging port is arguably the most frequently used physical component on any smartphone. Every time you plug in to charge, transfer files, or connect headphones, you subject this delicate part to mechanical stress and wear. Here are the tell-tale signs that your charging port board requires attention :

• Loose USB-C Connection: The charger no longer clicks securely into place and disconnects with the slightest movement

• Intermittent or No Charging: Your phone only charges when the cable is held at a specific angle, or it fails to charge altogether

• Loss of Fast Charging: The phone charges slowly, failing to recognise the 25W fast charging capability the A70 is designed for

• Data Transfer Failures: Your computer no longer recognises the phone when connected via USB

• Headphone Jack Malfunction: Audio cuts in and out, or no sound comes through when using wired headphones

• Microphone Issues: Callers struggle to hear you, or voice recordings are muffled or absent

• Physical Port Damage: The interior of the USB-C port appears bent, broken, or contains debris that cannot be safely removed

The Samsung Galaxy A70 features 25W fast charging and a 3.5mm headphone jack, making this charging port board a critical component for both power delivery and audio functionality . A faulty charging port board means you're missing out on these essential features. With this replacement from THE REPAIR PLUS, you can restore the full functionality your device was designed to deliver.

---

Key Features of This Galaxy A70 Charging Port Board

Complete All-in-One Bottom Board Assembly

This module is far more than just a charging connector. It's a complete PCB board assembly that integrates multiple essential functions in one convenient replacement part :

• USB Type-C Charging Port: The primary interface for charging and data synchronisation

• Integrated Charging IC: The dedicated circuit that manages power delivery and fast charging capability

• 3.5mm Headphone Jack: For wired audio connectivity

• Primary Microphone: Captures your voice during calls and recordings

This all-in-one design means that a single replacement can resolve multiple seemingly unrelated issues. If you're experiencing charging problems alongside headphone jack failure, this single module addresses both concerns simultaneously .

Integrated Charging IC for Proper Power Management

Unlike basic charging flex cables, this board includes the charging IC (Integrated Circuit) that controls how power flows into your device. The charging IC is responsible for :

• Regulating voltage and current during charging

• Communicating with the charger to negotiate fast charging speeds

• Protecting the battery from overcharging and overheating

• Managing power distribution to the rest of the device

A faulty charging IC can cause a range of issues, from slow charging to complete charging failure. By replacing the entire board with the IC included, you ensure proper power management is restored .

Supports 25W Fast Charging

The Samsung Galaxy A70 is equipped with 25W fast charging capability, allowing you to quickly power up the substantial 4500mAh battery . This genuine-style replacement board is specifically engineered to handle the higher current required for fast charging technology. Generic replacements without proper IC integration may limit your charging speed or fail to communicate correctly with the charger.

High-Speed Data Transfer and USB Connectivity

Beyond charging, this board enables reliable data transfer between your phone and computer. Whether you're backing up precious photos, transferring music libraries, or moving critical work documents, you'll enjoy stable, high-speed connectivity via the USB 2.0 interface .

Integrated 3.5mm Headphone Jack

The Samsung Galaxy A70 is one of the few modern smartphones that still includes a dedicated 3.5mm headphone jack . This replacement board maintains that functionality, allowing you to continue using your favourite wired headphones without the need for adapters or Bluetooth connectivity.

High-Quality Microphone for Clear Calls

The built-in microphone on this flex cable is responsible for capturing your voice during phone calls, voice messages, and video recordings. If callers have been struggling to hear you, or if your voice notes sound distant and muffled, this replacement board will restore that critical audio input functionality .

No-Solder Installation – Simple Connector-Based Design

This charging port board is designed as a modular replacement component. It connects to the motherboard via a simple flex cable connector, requiring no soldering for installation . Simply disconnect the old board and connect the new one. This modular design makes it an ideal replacement for professional technicians and experienced DIY enthusiasts alike.

Premium Build Quality

Manufactured with high-quality PCB materials and a protective solder mask, this board is designed for durability and heat resistance . The connectors feature corrosion-resistant contacts to ensure reliable performance over the long term.

---

Compatibility: Is This the Right Part for Your Device?

This charging port board is specifically engineered for:

Samsung Galaxy A70 (Model: SM-A705F, SM-A705FN, SM-A7050)

It is compatible with all variants of the Galaxy A70, regardless of:

• RAM configuration (6GB or 8GB)

• Storage capacity (128GB)

• Colour variant (Black, Blue, White, Coral)

Critical Compatibility Note: This part is designed specifically for the Galaxy A70 series. It is NOT compatible with the Galaxy A70s or any other A-series models.

How to Verify Your Device Model

Always confirm your phone's exact model before purchasing:

1. Open Settings on your device

2. Navigate to About Phone > Model Information

3. Verify that the model number displayed is SM-A705F, SM-A705FN, or SM-A7050

---

Technical Specifications

---

Why Buy Your Replacement Parts from THE REPAIR PLUS?

Proudly UK-Based – Fast Shipping Across the Nation

THE REPAIR PLUS is proud to be a UK-based supplier dedicated to serving customers across the nation with integrity and speed. When you order from us, you benefit from:

• Same Day Dispatch: Orders placed before 3:00 PM (Monday-Friday) are dispatched the same working day

• Fast UK Delivery: We use Royal Mail 1st Class and trusted couriers to ensure your part arrives reliably, typically within 1-2 working days

• Tracked Shipping: All orders include tracking information so you know exactly when to expect your delivery

• No Customs Delays: As a UK-based seller, there are no unexpected import duties or customs clearance issues

Quality You Can Trust

We understand that using sub-standard parts can lead to poor fitment, signal issues, or even damage to your device . That's why every part sold by THE REPAIR PLUS undergoes rigorous quality checks before being listed. We source our inventory from trusted manufacturers who meet high standards for precision and durability. Each item is checked and in good condition before shipping .

Expert Support from Fellow Tech Enthusiasts

Have a question about compatibility or installation? Our team is here to help. We're not just sellers; we're tech enthusiasts who understand the intricacies of device repair. Contact us through our store, and we'll be happy to assist you with any queries before or after your purchase.

Competitive Pricing Without Compromise

We believe that quality repair parts should be accessible and affordable. By maintaining efficient operations and strong supplier relationships, THE REPAIR PLUS offers premium components at competitive prices—without ever compromising on quality.

---

Installation Guide: How to Replace Your Galaxy A70 Charging Port

Replacing the charging port board on a Samsung Galaxy A70 requires patience, the right tools, and careful attention to detail. While this guide provides a comprehensive overview, THE REPAIR PLUS strongly recommends professional installation if you are not experienced with smartphone repairs. Incorrect handling can cause further damage to your device .

Tools You Will Need:

• Small Phillips head screwdriver (size #000)

• Plastic opening tools (spudgers, guitar picks, and pry tools)

• Suction cup for lifting the back cover

• Precision tweezers

• Heat gun or hair dryer (to soften adhesive)

• Replacement adhesive for reassembly

• SIM ejector tool

Important Preliminary Step: Diagnose the Issue

Before replacing the charging port board, it's important to correctly diagnose the problem. According to repair experts, charging issues can stem from several components :

1. Check the flex cable connection between the sub-board and main board – these can come loose

2. Test the battery – it may have dropped too low to accept a charge

3. Inspect the sub-board (charging port board) – this is the component you're replacing

4. Check the charging IC – included on this replacement board

The charging IC should always be the last component you suspect, after checking simpler possibilities . Do not start with the most complex part!

Detailed Installation Steps (for reference only):

Step 1: Prepare Your Workspace and Device

1. Power off your device completely to prevent electrical shorts

2. Remove the SIM card tray using the ejector tool

3. Work on a clean, well-lit surface with good ventilation

Step 2: Remove the Back Cover

1. Apply gentle heat around the edges of the back cover using a heat gun or hair dryer to soften the adhesive

2. Attach a suction cup near the bottom edge of the back cover

3. Gently pull while inserting a thin plastic pick between the back cover and frame

4. Carefully slide the pick around the perimeter to separate the adhesive

5. Work slowly and patiently to avoid cracking the back panel

Step 3: Disconnect the Battery

1. Once the back cover is removed, locate the battery connector on the motherboard

2. Gently pry it up to disconnect power – this critical safety step prevents short circuits

Step 4: Access the Charging Port Board

1. The charging port board is located at the bottom of the phone, near the USB-C port opening

2. Remove any screws securing the bottom speaker assembly or other components blocking access

Step 5: Remove the Faulty Charging Port Board

1. Locate the flexible ribbon cable connecting the charging port board to the motherboard

2. Carefully disconnect the ribbon cable using tweezers or a plastic spudger

3. Remove any screws securing the charging port board in place

4. Gently lift the old board from its housing

Step 6: Install Your New Charging Port Board

1. Remove your new Galaxy A70 Charging Port Board with IC from its packaging

2. Visually compare it with the old board to confirm identical shape and connector positions

3. Carefully place the new board into the correct position

4. Verify that the USB-C port and headphone jack align perfectly with the openings

5. Replace any screws to secure the board

6. Reconnect the ribbon cable to the motherboard, ensuring it clicks firmly into place

Step 7: Reassemble Your Phone

1. Replace the speaker module and any other components you removed

2. Reconnect the battery connector

3. Clean any old adhesive residue from the phone frame

4. Apply new adhesive to the back cover

5. Carefully align and press the back cover into place

Step 8: Test the Repair Thoroughly

1. Power on your device

2. Test charging with multiple cables and chargers, verifying fast charging activates

3. Check data transfer by connecting to a computer

4. Test the headphone jack with wired headphones

5. Make a test call to confirm microphone functionality

6. Test all other phone functions to ensure nothing else was affected

---

Important Notes and Precautions

• Professional Installation Recommended: While this guide provides detailed instructions, repairing modern smartphones requires specialized skills and tools. The installation of any new part should be done by a qualified person . THE REPAIR PLUS is not responsible for any damages to your device that may occur during the installation process.

• Diagnose Correctly: Before purchasing, ensure your issue is indeed with the charging port board. According to repair experts, you should check the flex cable connection and battery before replacing the sub-board .

• Adhesive Replacement: You will need new adhesive to properly seal the back cover and maintain the phone's original integrity. Do not reuse old adhesive.

• Screw Organisation: The Galaxy A70 uses multiple screw lengths throughout the device. Keep track of which screws belong where.

• Warranty Void Warning: Opening your device will void any remaining manufacturer warranty. This repair is intended for devices already out of warranty or for users who accept this risk.

• Verify Model Number: Please double-check your device's exact model number (SM-A705F, SM-A705FN, or SM-A7050) before purchasing to avoid compatibility issues .

---

Customer Satisfaction Guaranteed

At THE REPAIR PLUS, customer satisfaction isn't just a slogan—it's the foundation of our business. We are committed to providing high-quality replacement parts and exceptional service to our UK customers. If you have any issues with your purchase, please contact us, and we will make it right.

Our Promise to You:

• 30-Day Return Policy: For defective or incorrect items, simply contact us within 30 days of receipt

• Fast Response Times: We aim to answer all customer inquiries within 24 hours

• Honest Communication: We believe in transparent, honest communication about our products

• Quality Assurance: Every part we sell is one we would use in our own devices

Order your Galaxy A70 / A705F Charging Port Board with IC from THE REPAIR PLUS today and restore your device's charging, audio, and data transfer capabilities to full working order!

---

Frequently Asked Questions

Q: What does "with IC" mean, and why is it important?
A: "With IC" means this charging port board includes the Integrated Circuit (charging IC) that manages power delivery to your phone . This is important because the charging IC regulates voltage, negotiates fast charging speeds, and protects your battery from overcharging. Without a properly functioning IC, your phone may not fast charge correctly or could experience charging issues.

Q: Will this restore my 25W fast charging?
A: Yes, this board is designed to support the Galaxy A70's 25W fast charging capability . The integrated charging IC communicates with your charger to enable fast charging speeds.

Q: Does this part include the headphone jack?
A: Yes, this complete board assembly includes the 3.5mm headphone jack, allowing you to use wired headphones with your device .

Q: Will this fix my microphone issues?
A: If callers have been struggling to hear you, and the problem is related to the bottom microphone (not the top earpiece microphone), then yes, this replacement should resolve the issue .

Q: Is this compatible with my Galaxy A70?
A: This part is specifically designed for Samsung Galaxy A70 models SM-A705F, SM-A705FN, and SM-A7050 . Please verify your model number in Settings before purchasing.

Q: Do I need to solder anything to install this?
A: No soldering is required. This board connects to the motherboard via a standard flex cable connector . However, accessing the board does require disassembling the phone, which involves removing the back cover and various components.

Q: How do I know if my issue is the charging port board or something else?
A: According to repair experts, you should check in this order :

1. The flex cable connection between boards

2. The battery voltage

3. The charging port board (this part)

4. The charging IC (included on this board)

The charging IC should always be the last component you suspect. If you're unsure, professional diagnosis is recommended.

Q: How long will shipping take within the UK?
A: We dispatch all orders within one working day. Shipping within the UK via Royal Mail 1st Class typically takes 1-2 working days.

---
