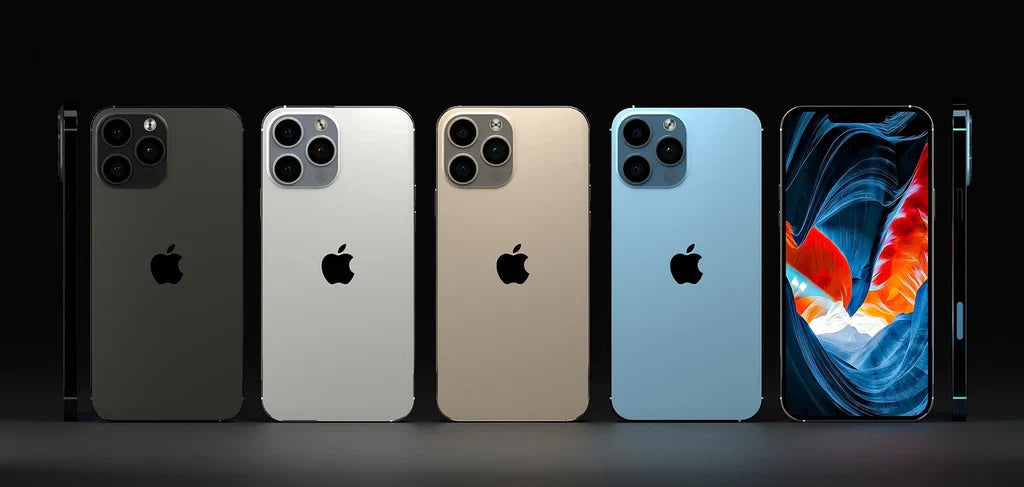

iPhone 13 Pro Max Screen Replacement Guide | The Repair Plus

iPhone 13 Pro Max screen replacement is a tricky and delicate process that needs precision, the appropriate tools, and a good understanding of the device's internal components.

In this detailed, step-by-step tutorial, we will guide you through the entire process of replacing the screen, providing you with all the details you need to replace the screen safely and effectively.

Whether you're a professional repair tech or an eager DIYer, this book is designed to give you expert-level information and hands-on instruction. Visit Shop Here..

Tools and Materials You’ll Need for iPhone 13 Pro Max Screen Replacement

Before starting, gather all necessary tools and materials:

• Pentalobe P2 screwdriver (iPhone compatible)

• Tri-point Y000 screwdriver

• Phillips #000 screwdriver

• Plastic spudger or opening tool

• Plastic cards or picks

• Suction handle or screen opening tool

• Tweezers (preferably ESD-safe)

• iOpener or heat gun

• ESD wrist strap (recommended for safety)

• New replacement screen (OEM-quality or higher)

• Adhesive strips or pre-cut adhesive for reassembly

• Magnetic project mat or screw organizer

Having high-quality tools can make a significant difference in the success of your repair. Cheap or worn-out tools may damage delicate components.

Step 1: Power Down and Prepare Your Workstation

Begin by turning off the iPhone 13 Pro Max. Hold down the Side button and one of the volume buttons until the power-off slider is displayed. Slide to power off the phone.

Next, prepare a clean, static-free workspace with good lighting. Ensure your tools are clean and organized. We highly recommend using a magnetic mat or labeled tray to track screws, as many of them are different lengths and types.

Step 2: Remove the Pentalobe Screws

Use the Pentalobe P2 screwdriver to remove the two screws located on either side of the Lightning port at the bottom of the phone. These screws secure the display assembly to the chassis.

Important: Be extremely careful with these screws; improper removal or reinstallation can strip the threads or damage the waterproof seal.

Step 3: Soften the Display Adhesive

Apple uses strong waterproof adhesive to seal the screen to the body. To loosen this:

Apply heat to the bottom edge of the screen using an iOpener or a heat gun for around 2–3 minutes. Don't overheat the phone.

Opt for a warm, uncomfortable-to-the-touch but not hot temperature. Heating the edges slightly loosens the adhesive for a simpler separation of the screen.

Step 4: Separate the Display from the Frame

Place a suction cup near the bottom edge of the screen, just above the charging port.

• Pull up on the suction cup while inserting a plastic opening pick or card between the frame and the screen.

• Gently wiggle and slide the pick along the bottom and sides to separate the adhesive.

• Take extra care around the right edge; avoid inserting the pick too deeply as there are sensitive display cables located there.

Continue lifting gently, gradually opening the screen like a book — from left to right — as it’s connected on the right side by flex cables.

Step 5: Disconnect the Battery

Once the screen is open, locate the battery connector shield at the bottom right of the motherboard.

• Use a Tri-point Y000 screwdriver to remove the screws securing the metal bracket.

• Use a plastic spudger to disconnect the battery flex cable first. This is critical to prevent electrical shorts during the rest of the disassembly.

Step 6: Disconnect the Screen Flex Cables

With the battery disconnected, move on to removing the shield that covers the display connectors.

• Use the Tri-point screwdriver again to remove the screws on the upper bracket.

• Gently lift the bracket with tweezers.

• Use a spudger to disconnect the three main cables:



• OLED display cable

• Touch digitizer cable

• Front sensor assembly (Face ID, speaker)

Place the screen aside on a clean, static-free surface.

Step 7: Transfer Components to the New Screen

If your new display does not come preassembled, you’ll need to transfer components from the original screen to the new one:

Front Ear Speaker + Face ID Module Transfer

This is one of the most sensitive parts of the repair. The Face ID module is paired to the logic board. Mishandling it will result in permanent Face ID loss.

• Remove the screws securing the earpiece speaker and sensor bracket using the Phillips #000 screwdrivers.

• Use tweezers to gently lift the speaker and attached flex assembly.

• Carefully peel and lift the microphone, ambient light sensor, and proximity sensor — they are lightly adhered to the back of the screen.

• Transfer the entire assembly onto the new screen, aligning it perfectly in its recess.

Warning: Do not stretch, tear, or kink this flex cable. If the Face ID fails, it is not replaceable without Apple's calibration tools.

Step 8: Install the New Display

Now that the sensor assembly has been transferred:

• Reconnect the display cables to the motherboard.

• Reconnect the battery cable.

• Temporarily position the screen into the frame and power on the device to test:



• Touch functionality

• Brightness adjustment

• Face ID

• Display clarity (check for dead pixels or lines)

If all tests pass, power off the device again.

Step 9: Seal the iPhone 13 Pro Max

• Carefully reinstall all brackets with the correct screws.

• Remove any old adhesive from the frame using isopropyl alcohol and a lint-free cloth.

• Apply new waterproof adhesive strips around the perimeter of the frame.

Align the screen and press gently but firmly around the edges to bond the adhesive. Reinstall the two Pentalobe screws at the bottom of the device.

Step 10: Final Quality Control and Clean-Up

Power on the device and run a full test:

• Touchscreen Responsiveness: Try typing, scrolling, and edge gestures.

• Display Quality: Look for uniform color and brightness.

• True Tone: If you backed up the screen data using programmer tools like JC V1S, True Tone should work.

• Face ID: Test by adding a new face and checking recognition.

• Audio & Proximity Sensor: Play audio from the earpiece and make a call to ensure the screen turns off when near your ear.

Clean the screen with a microfiber cloth and ensure all screws are snug but not overtightened.

Pro Tips for a Successful iPhone 13 Pro Max Screen Replacement

• Use a screw chart or magnetic mat: Misplacing screws can result in damage when reinstalling, especially near the logic board.

• ESD Protection: Always ground yourself before handling internal parts.

• Replace Adhesive Every Time: Reusing old glue can compromise waterproofing.

• Test Before Sealing: Don’t fully close the phone until you’ve confirmed that all features work correctly.

• Consider Display Programming Tools: Some features like True Tone and auto brightness may not transfer without specialized hardware programmers.

Common Issues After Screen Replacement and How to Fix Them

1. Face ID Not Working

• Caused by damage to the sensor assembly or improper installation.

• Always transfer the original sensor components carefully.

2. Display Flickering or Lines

• Usually due to loose connections.

• Reseat the flex cables and inspect for debris or bent pins.

3. Touch Not Working

• Ensure digitizer cable is fully connected.

• If the problem persists, the new screen may be faulty.

4. True Tone Missing

• The True Tone function is tied to the original screen.

• Use screen programming tools to transfer calibration data.

5. Phone Won’t Power On

• Double-check battery connector.

• Try a force restart (Volume Up → Volume Down → hold Side button).

When to Seek Professional Repair Services

While this guide is designed for those confident in their technical skills, the iPhone 13 Pro Max is a premium, sealed device, and mistakes can be costly.

If at any point you feel unsure or if Face ID functionality is critical to you, it may be wise to consult a certified Apple repair center or a reputable third-party technician with experience in OLED and Face ID repairs.

Top Services for iPhone 13 Pro Max Screen Replacement

A cracked or unresponsive screen on the iPhone 13 Pro Max can be more than just a nuisance—it can affect daily productivity, communication, and access to vital apps.

Fortunately, some top-rated professional repair shops specialize in iPhone 13 Pro Max screen replacement with expert solutions that return your phone's display to factory-spec condition.

1. Apple Authorized Service Providers (AASP)

Apple Authorized Service Providers (AASPs) are authorized repair centers sanctioned and governed by Apple. They comprise the Apple Store itself, as well as retail partners like Best Buy, Simply Mac, and local repair chains.

Key Benefits:

• Genuine Apple Parts: All repairs are done with genuine Apple parts, which maintain screen sensitivity, True Tone, Face ID, and accurate brightness.

• Certified Technicians: Expertly trained and Apple-certified technicians do every repair, offering precision and diligence.

• Warranty Coverage: Repairs come with a 90-day Apple warranty or are covered under AppleCare+ if applicable.

• On-Site Diagnostics: Advanced diagnostics check not just screen damage, but potential internal issues like logic board, Taptic Engine, or Face ID failure.

Service Process:

• Appointment Booking via Apple Support

• In-store drop-off or mail-in repair

• Turnaround time: 3 to 5 business days (mail-in) or same-day (in-store)

Cost Estimate:

• Without AppleCare+: ~$329

• With AppleCare+: ~$29–$99 depending on coverage plan

2. uBreakiFix by Asurion

One of the largest third-party repair networks in North America, uBreakiFix specializes in same-day screen replacement for all major smartphones, including the iPhone 13 Pro Max.

Why Choose uBreakiFix:

• OEM-Quality Screens: Offers both genuine Apple parts (for customers with AppleCare+ under a new program) and OEM-equivalent alternatives.

• Nationwide Locations: With over 700+ stores, they offer convenient walk-in or appointment-based services.

• 1-Year Warranty: A standard 365-day limited warranty on all screen repairs.

• Transparent Pricing: Fixed upfront pricing with no hidden fees or diagnostic charges.

Turnaround and Expertise:

• Repairs typically completed in 2–3 hours

• Technicians undergo manufacturer-approved training

• Offers device protection plans and liquid damage diagnostics

Typical Pricing:

• OEM-Equivalent Screen: ~$249

• Apple Genuine Screen (if eligible): ~$329

3. CPR Cell Phone Repair

CPR (Cell Phone Repair) has become a well-known repair service chain with 500+ locations globally, offering specialized support for Apple devices, including same-day iPhone 13 Pro Max screen replacements.

Service Highlights:

• Free Diagnostics: CPR offers complimentary evaluations before any repairs begin.

• Same-Day Turnaround: Most screen replacements completed in under 2 hours.

• Lifetime Warranty: A standout lifetime warranty on screen repairs against defects in parts or workmanship.

• Certified Technicians: Staff trained specifically in OLED technology, Face ID calibration, and safe disassembly of newer iPhones.

Notable Advantages:

• Offers both walk-in service and mail-in options

• Uses high-grade OLED replacement panels

• Optional tempered glass installation included with many repairs

Estimated Costs:

• Pricing varies by region, generally between $219–$289

4. Puls On-Demand Repair

Puls offers a unique, mobile repair service where technicians come directly to your home or office. Known for their speed and convenience, Puls is ideal for users who value fast, hassle-free repairs without traveling.

Top Features:

• In-Home Repairs in Under 60 Minutes

• All services backed by a lifetime warranty

• Technicians use top-tier OLED panels or OEM-grade parts

• Face ID-safe disassembly and waterproof seal reapplication

Coverage and Availability:

• Currently available in more than 50 major cities across the U.S.

• Repairs booked via app or online, with same-day availability

Pricing:

• Starting at $249–$299, depending on location

• Additional fee for screen protector or waterproofing kit

5. iFixScreens

iFixScreens is a growing franchise repair service with over 150+ stores in the U.S. They offer budget-friendly screen replacements while maintaining service quality.

Why iFixScreens is a Top Choice:

• Multiple Screen Options: Choose between LCD, OLED, and OEM-grade panels depending on budget and performance expectations.

• 90-Day Warranty: Standard coverage on parts and labor

• No Appointment Needed: Accepts walk-ins with average repair time of 1–2 hours

• Offers bulk device repair plans for schools and businesses

Standout Services:

• Free Screen Evaluation

• Optional screen protector installation with lifetime replacement plan

• Data-safe procedures during all repairs

Cost Range:

• LCD replacement: ~$199

• OLED replacement: ~$249

6. Mobile Kangaroo (Apple Authorized)

As an Apple Authorized Service Provider, Mobile Kangaroo offers Apple-approved repairs, including genuine iPhone 13 Pro Max screen replacements with full feature preservation.

Core Advantages:

• Uses Apple-sourced components

• Maintains Face ID, True Tone, and ambient light sensor calibration

• Supports AppleCare+ repairs

• Stores located in several U.S. states, including California, Washington, and Texas

Service Experience:

• Book online or visit local store

• Turnaround: 1–3 hours depending on part availability

• Apple support ticket integrated directly into their system

Cost Breakdown:

• With AppleCare+: ~$29

• Without AppleCare+: ~$329

7. iResQ

For customers seeking reliable mail-in repair services, iResQ offers professional, factory-grade screen replacements for all iPhone models, including the 13 Pro Max.

Service Highlights:

• Offers nationwide mail-in repair service

• High-quality OLED screens with True Tone retention

• 3–5 day turnaround, including shipping time

• 6-month warranty on parts and labor

User Convenience:

• Free pre-paid shipping label provided

• Screen repairs performed in a dust-free cleanroom environment

• Technicians inspect for other issues like battery swelling, frame damage, or logic board faults

Average Repair Cost:

• Starting at $229 (price may vary depending on shipping option)

8. Joe’s Phone Repair (Independent Elite Technicians)

For users looking for boutique-level service, independent repair shops like Joe’s Phone Repair offer personalized service, often with lower prices and faster turnaround than national chains.

Key Benefits:

• Direct communication with technician

• Option to watch the repair process live

• Personalized device inspection

• Higher chance of price negotiation or bundled offers (e.g., screen + battery combo)

What to Expect:

• OLED or refurbished OEM screens available

• In-shop service typically completed in under 90 minutes

• Optional services: waterproof seal reapplication, camera lens polishing, glass-only repair

Pricing Overview:

• As low as $179–$249, depending on the screen grade and region

Conclusion: Choosing the Best iPhone 13 Pro Max Screen Replacement Service

When selecting a iphone 13 pro max screen replacement service for your iPhone, consider the balance between cost, part quality, repair expertise, and warranty coverage.

Services like Apple AASP, uBreakiFix, and CPR Cell Phone Repair provide consistent, high-quality repairs, while options like Puls and independent techs offer convenience and flexibility.
